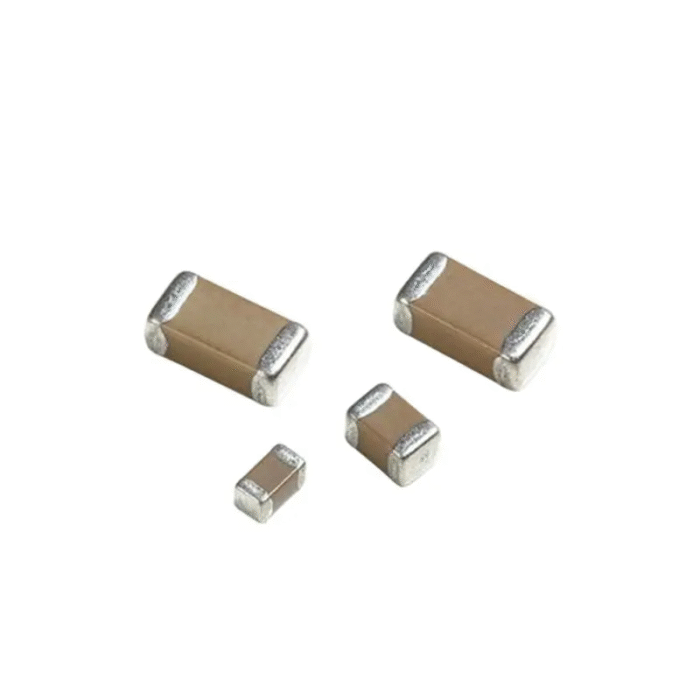

Original Factory MLCC CC0603JRNPO9BN560 Surface Mount Capacitor (Copy)

基本信息1

• 电容值：56皮法。
• 额定电压：50V直流。
• 封装尺寸：0603（公制1608，即长度1.6毫米，宽度0.8毫米）。
• 电容公差：±5%。
• 介电特性：C0G/NP0。
• 产品系列：CC系列。
• 工作温度范围：- 55°C 到 125°C。

产品特点

• High precision1: Using NP0 dielectric material, it has high capacitance stability. The capacitance value changes very little under different temperature, voltage, and frequency conditions, providing stable and accurate capacitance performance for circuits. It is suitable for circuits with high requirements for capacitance accuracy, such as high – frequency oscillation circuits and timing circuits.
• Small size1: The 0603 package size is relatively small, which helps save circuit board space. It is suitable for use in electronic devices with high – density packaging, such as mobile phones, tablets, laptops, and other portable electronic products, as well as various miniaturized electronic modules.
• Surface – mountable1: It is suitable for surface – mount technology (SMT), which facilitates installation on automated production lines, improving production efficiency and reducing production costs. At the same time, it can also ensure good electrical connection and mechanical stability.
• Non – polar3: It is a non – polar capacitor, so there is no need to consider the positive and negative polarity when installing it in the circuit. It is easy to use and will not damage the circuit or the capacitor itself due to incorrect polarity connection.
• High reliability3: It complies with relevant international standards and specifications, such as IEC 60068, and has good reliability and stability. It can work stably for a long time in various harsh working environments and is suitable for application fields with high requirements for product reliability, such as industrial control, automotive electronics, and aerospace.

Application Areas1

• Consumer electronics: It is used in the power supply circuits, audio circuits, and RF circuits of mobile phones, tablets, digital cameras, audio players, and other devices to perform functions such as filtering, coupling, and bypassing, improving the stability and performance of the circuits.
• 便携设备：如便携式医疗设备、手持对讲机、移动电源等。由于其体积小和高性能，可以满足这些设备的空间和电气性能要求。
• 电源管理：在各种电源适配器、充电器、直流-直流转换器和其他电源管理电路中，它被用来稳定电源输出，滤除电源中的高频率噪声和纹波，从而提高电源的质量和效率。
• 工业领域：它用于工业自动化控制系统、传感器电路、逆变器和其他设备，为电路提供稳定的电容支持，并确保设备的正常运行。
