Product Information of KCT61011Product Information of KCT61011
KCT61011 is an LNA (Low-Noise Amplifier) designed for Wi-Fi UNII 1-8 and UWB channel 5-9.
Parameter Table
Product Information of KCT61011
KCT61011 is an LNA (Low-Noise Amplifier) designed for Wi-Fi UNII 1-8 and UWB channel 5-9.
Parameter Table (English)
|
Parameter
|
Description
|
|
Frequency Channels
|
Ch 5-9 (6489.6MHz–7987.2MHz)
|
|
Radar Mode
|
1T2R (1 TX, 2 RX)
|
|
Processor
|
ARM® STAR MC1 (Cortex-M33 enhanced) @ 250MHz (FPU/DSP)
|
|
Data Rates
|
Up to 64Mbps
|
|
Modulation/PRF
|
PRF 15.6MHz (BPRF), 124.8/249.6MHz (HPRF)
|
|
Ranging & Localization
|
2-way ranging, TDoA, AoA
|
|
TX Power
|
Up to 10dBm peak (FCC/ETSI compliant)
|
|
Memory
|
256kB CODE RAM128kB Data RAM192kB ROM512kB/1MB Flash (stacked or external via QSPI)
|
|
Interfaces
|
SPI (40MHz),UART/LIN,CAN-FD,QSPI,I2C
|
|
Power Management
|
1.72V-3.6V
|
|
Reliability
|
AEC-Q100 Grade 2
|
|
Package
|
QFN40 (5mm × 5mm)
|
|
Product Line
|
Specific Products
|
Key Features
|
|
Wi-Fi Related Products
|
Wi-Fi FEM
|
Covers standards from Wi-Fi 5 to Wi-Fi 7, with mass production exceeding 1 billion units. It is an AVL or DRL supplier for multiple well-known platforms (such as NonLinear Wi-Fi 7 platform, QCN90XX platform, etc.) and serves many customers including TP-Link and Telefonica.
|
|
Wi-Fi Related RF Components (e.g., KCT1851SL Low Noise Amplifier)
|
Supports Wi-Fi UNII 1-8 frequency bands (5170-7125 MHz), with low noise and high gain characteristics, suitable for laptops, tablets, smartphones, wireless video systems and other devices.
|
|
|
IoT Related Products
|
IoT FEM
|
Designed for IoT scenarios, specific parameters and application scenarios are not detailed, but it is one of the company’s core product lines.
|
|
Cellular Communication Related Products
|
Cellular FEM
|
Front-end module for cellular networks.
|
|
Cellular Wi-Fi Combination Products
|
Modules that integrate cellular communication and Wi-Fi functions to meet the needs of multi-mode communication.
|
|
|
Automotive Electronics Related Products
|
Automotive V2X FEM
|
Front-end module for automotive Internet of Vehicles (V2X) applications, supporting information interaction between vehicles and the outside world.
|
|
77GHz Automotive Millimeter Wave Radar SoC Chip
|
Intelligent sensing chip for autonomous driving and other scenarios, specific parameters are not detailed.
|
|
|
UWB (Ultra-Wideband) Related Products
|

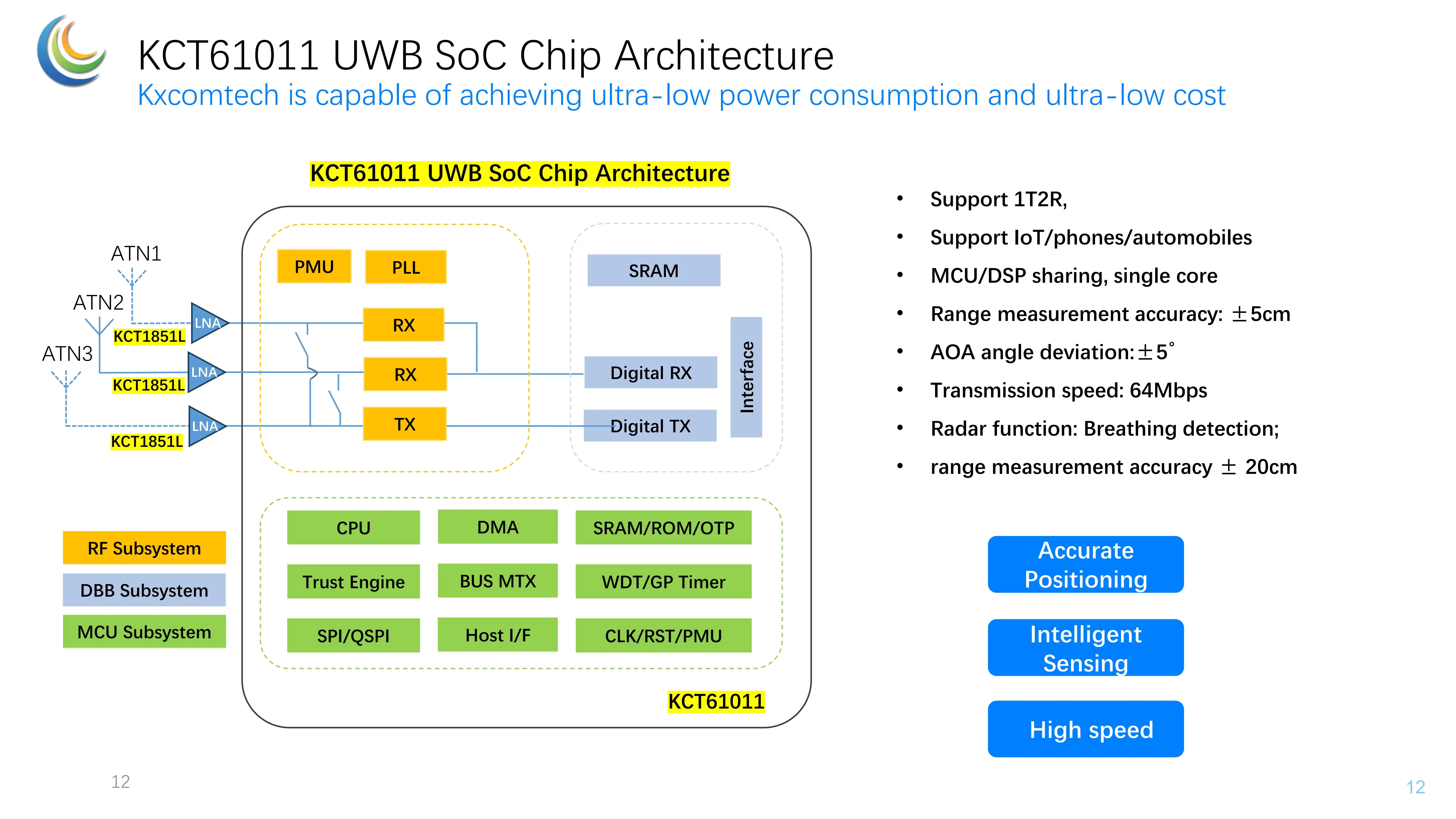

UWB SoC Chip (e.g., KCT61011)
|

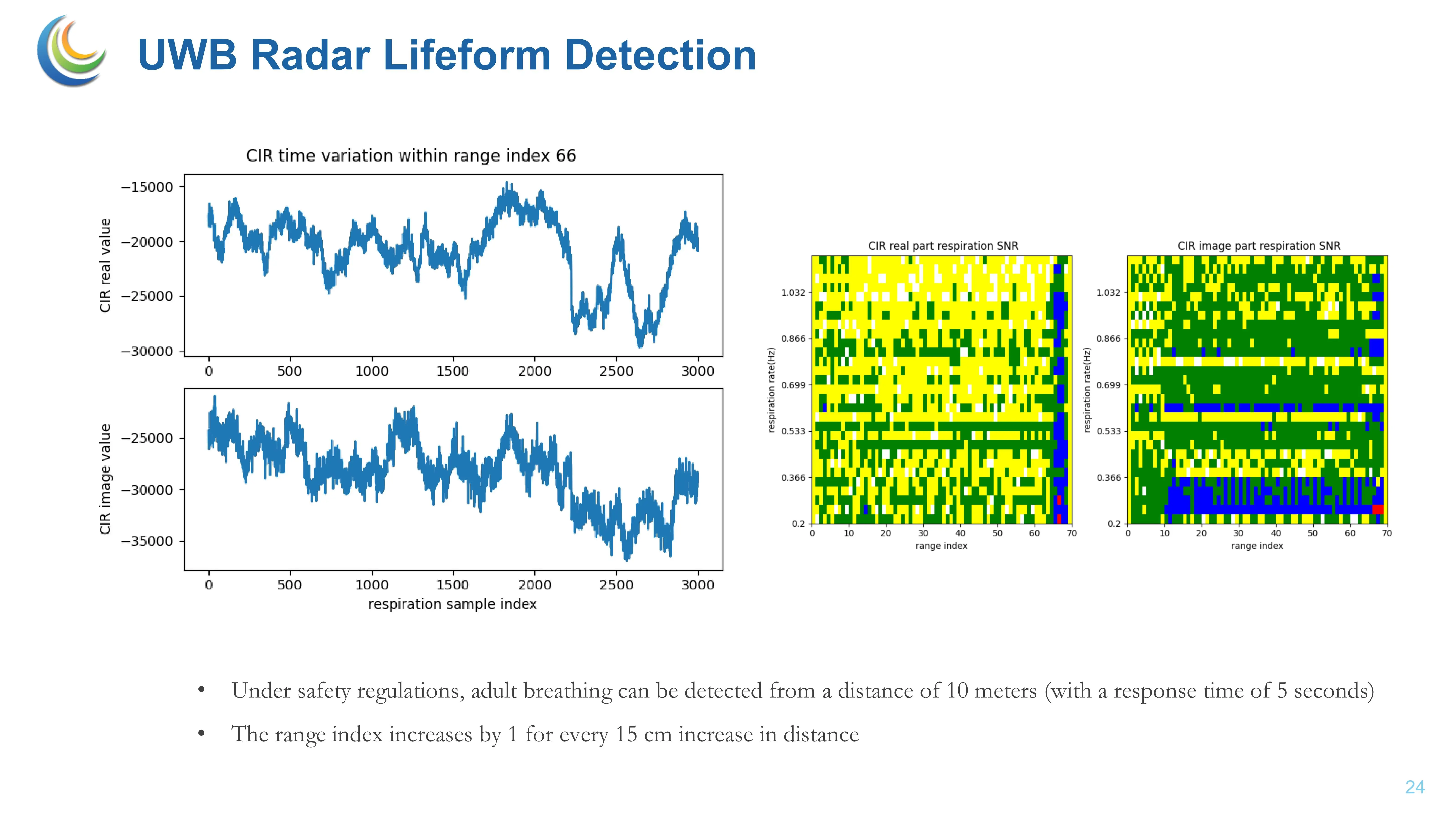

A highly integrated low-power UWB SoC that complies with IEEE 802.15.4-2015/4z, FiRa 3.0 and other standards, supports 1T2R and scalable antenna configuration, with a positioning accuracy of ±5cm, an AOA angle deviation of ±5°, a transmission speed of 64Mbps, and radar functions (such as breathing detection, motion tracking, etc.), suitable for digital car keys, asset tracking, wearable devices, AR/VR and other scenarios.
|
|
UWB RF Components (e.g., KCT1851L, KCT1851SL)
|
KCT1851L is an LNA for UWB channels 5-9 (6489.6MHz–7987.2MHz), integrated into the KCT61011 chip to help improve UWB reception performance. KCT1851SL supports both Wi-Fi and UWB, and performs well in UWB channels 5-9 (6240-8236.8MHz), with low insertion loss and other characteristics, suitable for UWB products.
|
