USB3.0 5MP全局快门相机模块 USB3.0 5MP全局快门相机模块 单色CMOS传感器 NIR UVC工业全局快门 USB3.0 5MP全局快门相机模块 单色CMOS传感器 NIR UVC工业全局快门相机模块
无人机检测 VR/AR眼镜
工业
例如处理机器人/机械臂和双目清扫机器人
|
属性名称
|
U3_CGS_2MP
|
U2_CGS_2MP
|
|
品牌
|
西盛微
|
西盛微
|
|
商品编号。
|
U3_CGS_2MP
|
U2_CGS_2MP
|
|
模型
|
U3_CGS_2MP
|
U2_CGS_2MP
|
|
供应类别
|
订单驱动
|
订单驱动
|
|
产品类型
|
全局快门相机
|
全局快门相机
|
|
产品类别
|
USB摄像头
|
USB摄像头
|
|
应用范围
|
32846399857
|
32846399857
|
|
传感器像素
|
2MP（200万像素）
|
2MP（200万像素）
|
|
最高分辨率
|
1600×1200
|
1600×1200
|
|
帧率
|
60帧每秒
|
60帧每秒
|
|
界面
|
USB 3.0
|
USB 2.0
|
|
聚焦模式
|
固定焦点或自动对焦
|
固定焦点或自动对焦
|
|
系统支持
|
Windows, 安卓, Linux
|
Windows, 安卓, Linux
|
|
驱动程序要求
|
免驱动
|
免驱动
|
|
电缆长度
|
可定制（可选）
|
可定制（可选）
|
|
产品重量
|
0.1克
|
0.1克
|
|
附加功能
|
全局快门
|
全局快门
|
|
定制服务
|
OEM/ODM 可提供
|
OEM/ODM 可提供
|
|
标志印刷
|
支持
|
支持
|
|
定制方法
|
基于绘图的定制
|
基于绘图的定制
|
|
提前期
|
1-3天
|
1-3天
|
|
直运
|
支持
|
支持
|
|
发射年份
|
2020
|
2020
|
|
售后服务
|
提供
|
提供
|
|
颜色选项
|
USB3.0 接口
|
USB2.0 接口
|
|
自有品牌授权
|
是的
|
是的
|
|
内置麦克风
|
不
|
不
|
|
网络访问
|
不支持
|
不支持
|
|
防抖性能
|
光学防抖
|
光学防抖
|
1 , Programmable control: brightness, contrast, hue, saturation, sharpness, gamma, white balance, backlight contrast, gain, exposure time, etc. ( According to each CMOS The characteristics of the actual situation to choose )
2 , provide CMOS Sensor The image optimization debugging service can be optimized and upgraded according to different application scenarios and requirements.
3 provides the option to change the camera’s default resolution, frame rate, device name, PID and VID Information (to be confirmed by both parties).

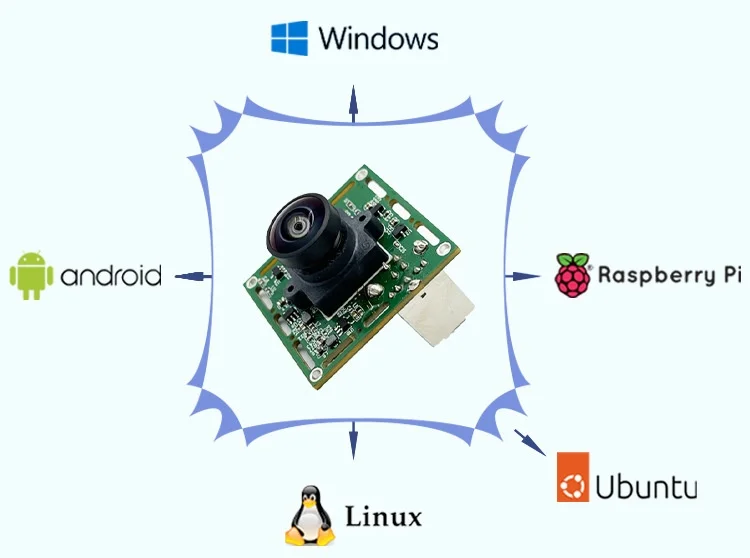

4 According to the actual use of users, we can provide our standard Windows Android or Linux Systematic SDK Call Package /API . (If you need special functions, please contact us to evaluate whether to meet and related customization costs).
5 Optional lens specifications, such as fixed focus lens, auto focus lens and manual focus lens.
Due to the use of each scene and requirements of different standards! If you need to improve the image effect after receiving it, please communicate with us in time. We will optimize debugging according to the actual use scenario.
1 , online debugging support mode. We can do it upon request ISP Debugging optimizes the image effect to get as close as possible to the effect requirements.
2 , Line down our company for debugging mode. Remember, you need to bring a complete set of modules, light sources and display screens that are determined to be used on the project.
3 , Line down your company for debugging mode. Both parties can communicate and confirm according to the actual project situation. Subject to confirmation.

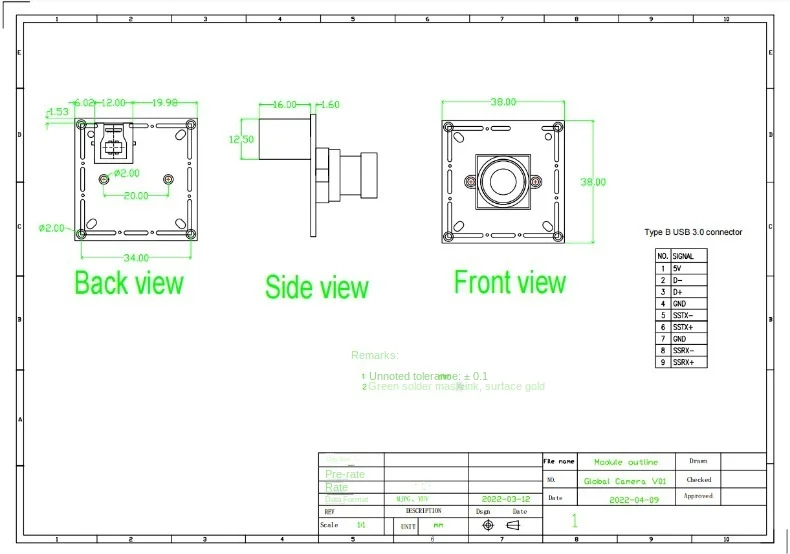

1 PCB Dimensions and connection ports can be custom designed after evaluation according to requirements.
2 Support external trigger photo and other functions.
3 Customize the exposure time according to different scenes and applications, and adjust the exposure manually.
4 Support Add MCU and gyroscope (MPU) The function and PCB Size customization.
5 Support custom GPIO Interface control function.
6 Support 2 One, 3 One, 4 One, 5 and 6 One CMOS Sensor Wait. Synchronous, frame synchronous output. (such as one dragging two, one dragging three, one dragging four, one dragging five and one dragging six).
Note: The number of devices used needs to be in the case of host bandwidth allows, if satisfied, you can use many devices at the same time. On the contrary, it is decided according to the actual situation.
1 UAV inspection, VR/AR Glasses.
2 Industrial product line testing. Such as industrial production of product quality inspection.
3 The binocular robot. For example handling robots / Mechanical arm, and binocular sweeping robot.
(Merrill Chip) Headquartered in shenzhen, the window city of China’s reform and opening up, Merrill Chip was founded in 2013. After years of forging ahead, Merrill has gradually developed from an agent of international semiconductor products into a high-tech enterprise integrating semiconductor circuit manufacturing, Chip research and development, business services and software development
At the same time, huanyu with good performance and business reputation, and military products in charge of the department and many research and production units to establish a close relationship of cooperation.
Shenzhen Merrillchip Electronics Co., Ltd. specializes in offering comprehensive, turnkey manufacturing solutions for esteemed clients in the automotive electronics, medical electronics, and industrial automation sectors. Our commitment to quality excellence is reflected in our certifications, including ISO 14001, ISO 9001, and IATF 16949 systems. Our in-house capabilities encompass SMT patching, dip plug-in, post-welding, testing, assembly, and packaging processes. Moreover, we specialize in providing comprehensive services such as OEM, ODM, and PCB/PCBA production, along with expert assistance in sourcing electronic components. Our expertise ensures that you receive the finest in original chip samples and high-quality procurement services for your electronic components.
1. who are we?
We are based in Guangdong, China, start from 2013,sell to North America(30.00%),Eastern Europe(15.00%),Western Europe(10.00%),Southeast Asia(10.00%),Eastern Asia(5.00%),South America(5.00%),Oceania(5.00%),Southern Europe(5.00%),Northern Europe(5.00%),Africa(4.00%),Mid East(4.00%),South Asia(1.00%),Central America(1.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
PCBA, PCB, OEM PCBA, FPGA, Components Purchase Service
4. why should you buy from us not from other suppliers?
Merrillchip is an electronic component distribution company headquartered in Shenzhen, the largest electronics region in Asia. Main business: Electronic components, IC chip DIP external, post-solder test, assembly package, OEM, PCB PCBA EMS services
5. what services can we provide?
Accepted Delivery Terms: FOB,EXW,FCA,DDP;
Accepted Payment Currency: USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Cash;
Language Spoken: English,Chinese,Spanish,German,French,Russian
